Description

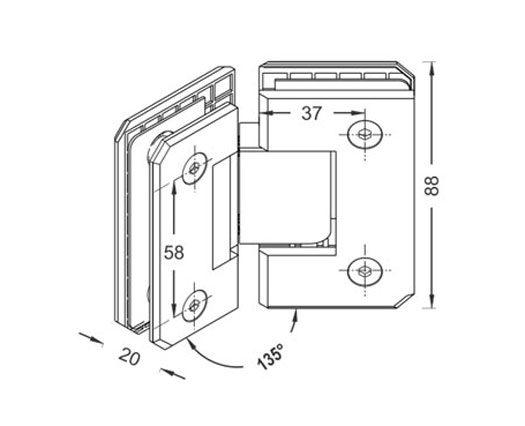

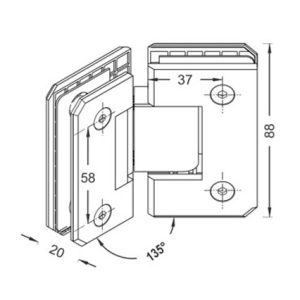

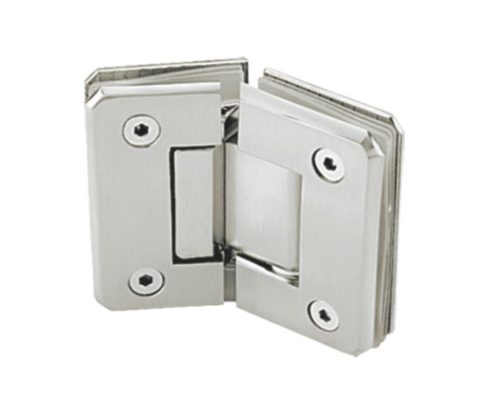

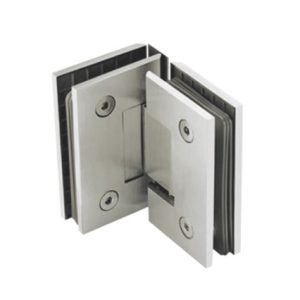

| Glass To Glass 135° : | Double action spring door return from 25° deg |

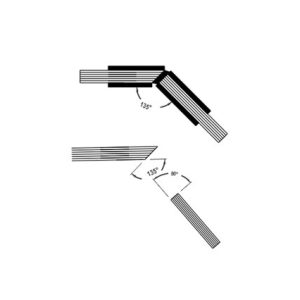

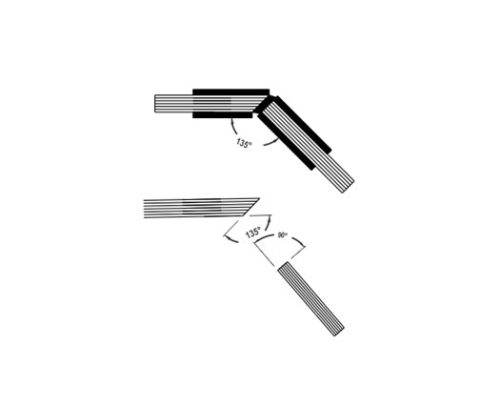

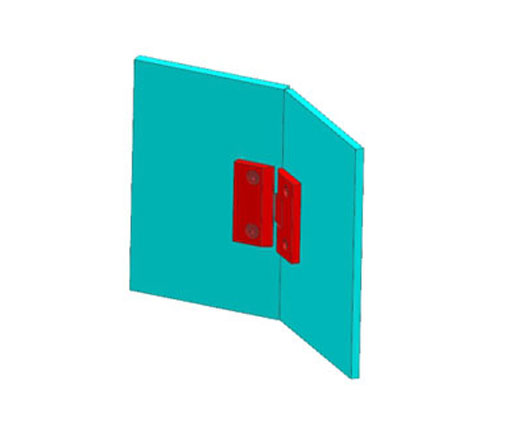

| Area of Application : | For connecting glass door panel with a fixed glass panel at 135° Brass |
| Material : | stainless steel 304,316 |
| Finish : | SSS/PSS |

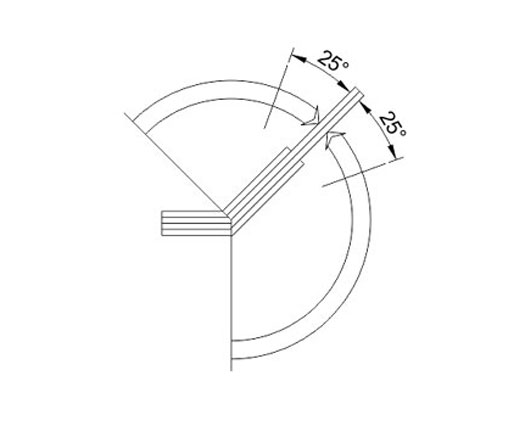

| Opening angle & Side : | Open inside and outside both 90° degree |

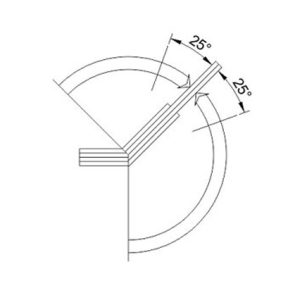

| Version : | Automatic closing from opening angle 25° |
| Load Bearing capacity : | 60 kg /2 hinges |
| Installation : | Clamp fixing with a hexagon socket head screws. |

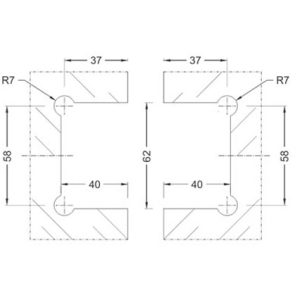

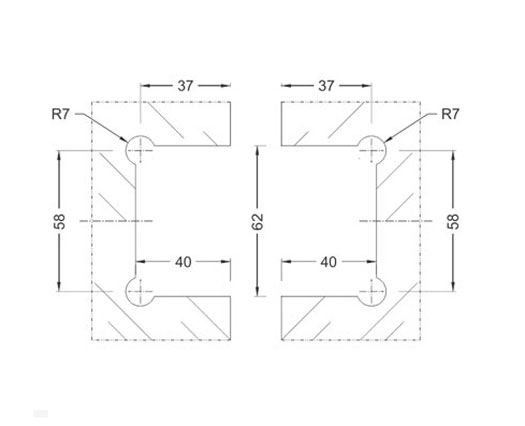

For Glass Thickness In mm
8, 10, 12
Features
- Wall to glass hinges at 135°
- Centrally positioned pivot keeps glass panel in line
- Gasket to prevent damage to glass panel
- Firm grip with glass panel
- Maximum door width is 800 mm
