Description

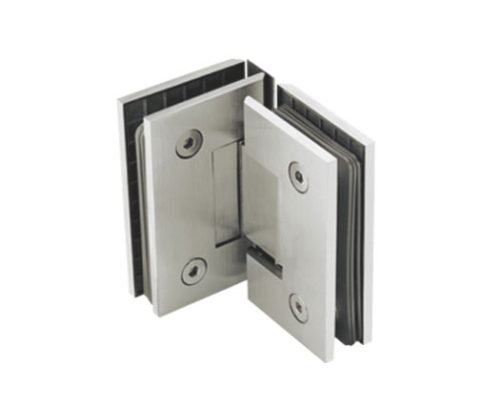

| Glass to Glass 90°: | Double action spring Door Return From 25° deg |

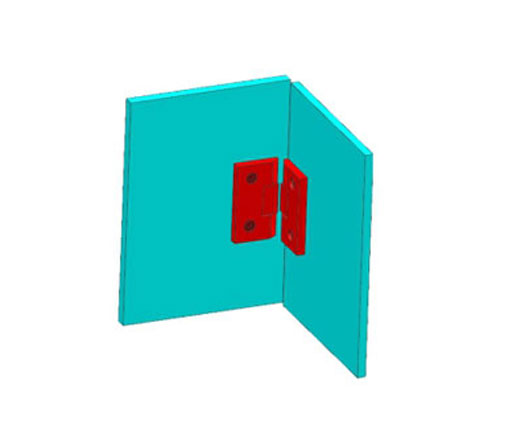

| Area of Application : | For connecting glass door panel with a fixed glass panel at 90° |
| Material : | stainless steel 304,316 |
| Finish : | SSS/PSS |
| Opening angle & Side : | Open inside and outside both 90° degree |

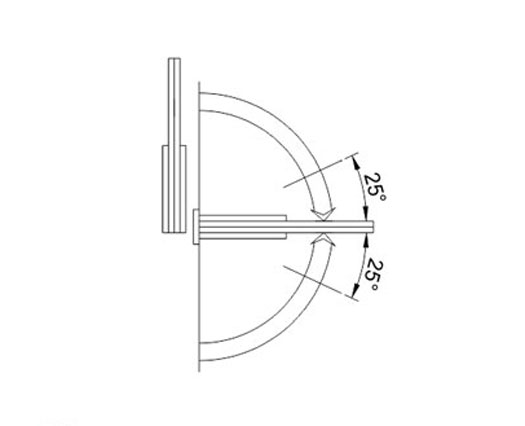

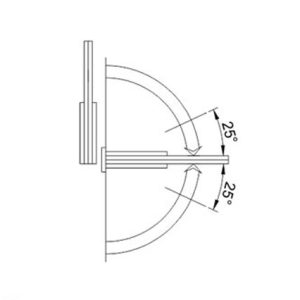

| Version : | With automatic closing from opening angle 25° |
| Load Bearing capacity : | 60 kg / 2 Hinges |
| Installation : | For clam fixing with a hexagon socket head screws |

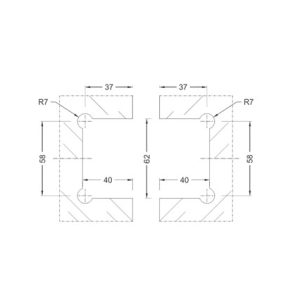

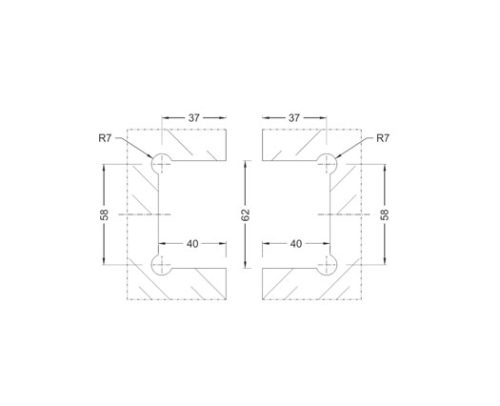

For Glass Thickness In mm
8,10,12
Features
- Glass to glass hinge at 90°
- Centrally Positioned Pivot Keeps Glass Panel In Line
- Gaskets to Prevent Damage To Glass Panel
- Firm Grip with Glass Panel
- Maximum Door Width Is 800 mm
