Description

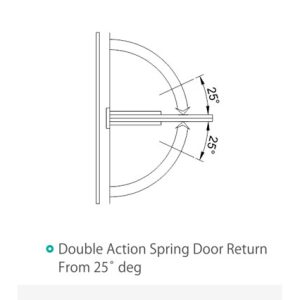

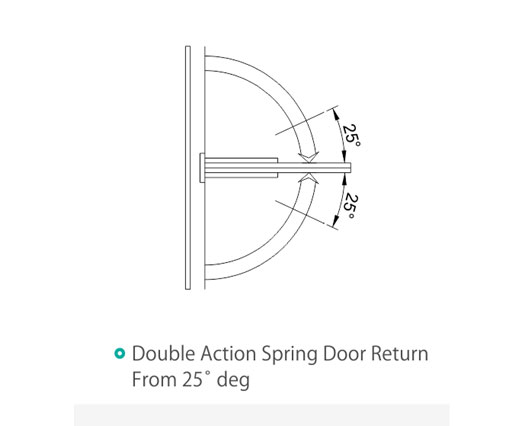

| Wall to glass 90° : | Double action spring door return from 25° deg |
| Area of application : | For Connecting opening glass Hinge at 90° |
| Material : | Brass |
| Finish : | SSS /PSS |
| Opening angle & Side : | Open 90° deg |
| Version : | With automatic closing from opening angle 25° |
| Load Bearing capacity : | 60 kg / 2 Hinges |

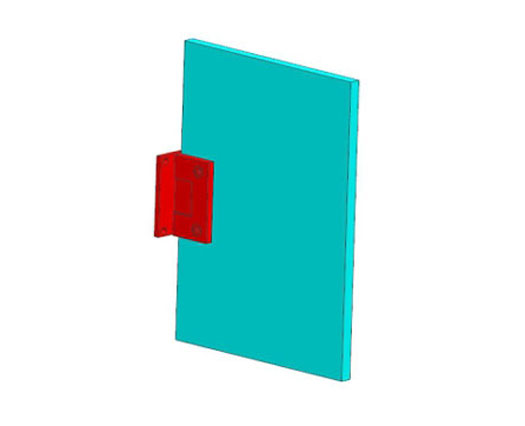

| Installation : | Screw fixing to the wall, Clamp fixing with a hexagon socket head screws |
Features

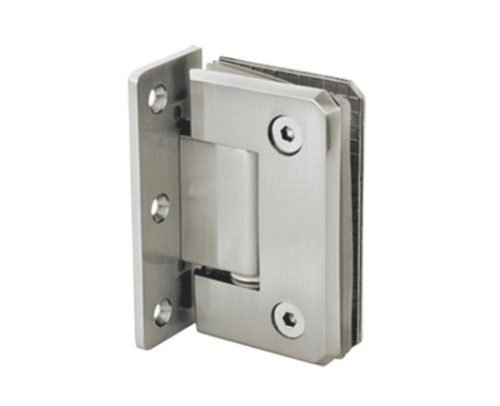

- Wall to glass hinge
- Offset positioned pivot
- Gaskets to prevent damage to glass panel
- Firm grip with glass panel
- Maximum door width is 800 mm
