Description

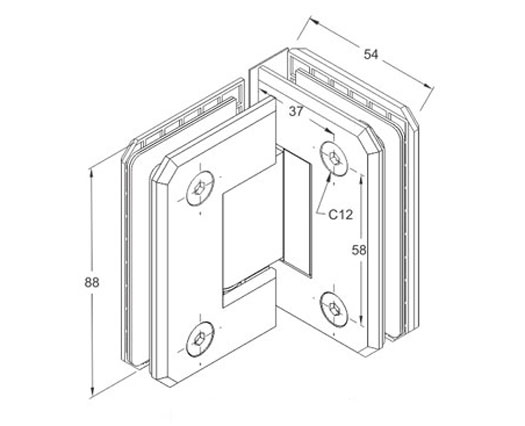

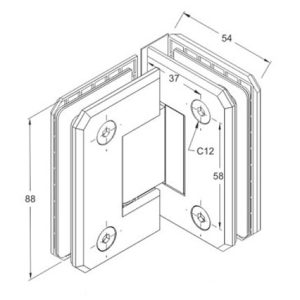

| Glass to glass 90° : | Double action spring door return from 25° deg |

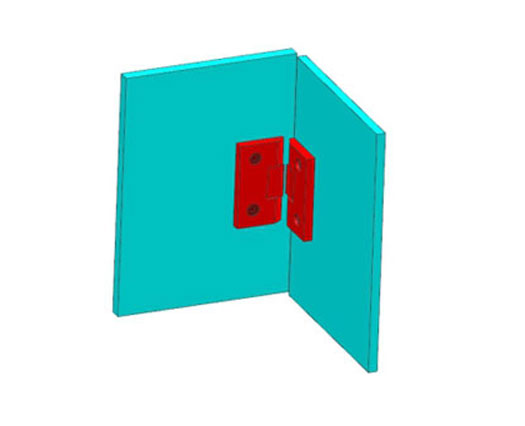

| Area of application : | For connecting glass door panel with a fixed glass panel at 90° |
| Material : | Brass |
| Finish : | SSS/ PSS |
| Opening angle & Side : | Open inside and outside both 90° deg |

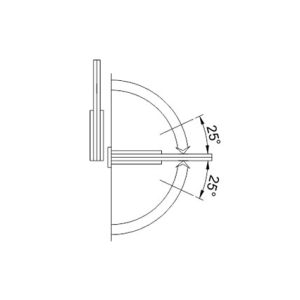

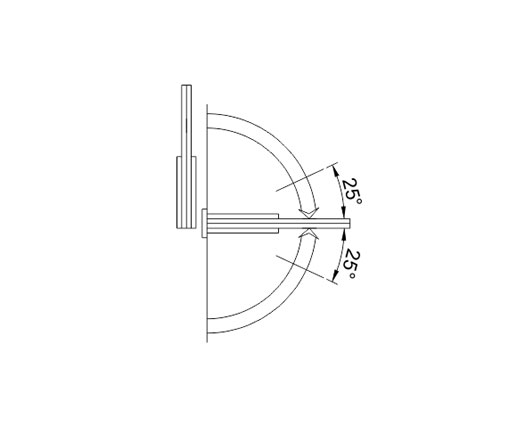

| Version : | automatic closing from opening angle 25° |
| Load bearing capacity : | 60 kg / 2 Hinges |
| Installation : | Clamp fixing with a hexagon socket head screws |
Features

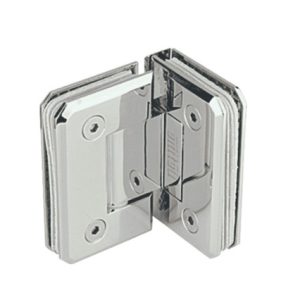

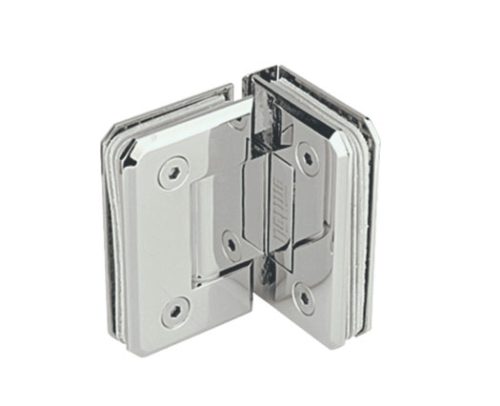

- Glass to glass hinge at 90°
- Centrally positioned pivot keeps glass panel in line
- Gaskets to prevent damage to glass panel
- Firm grip with glass panel
- Maximum door width is 800 mm
