Description

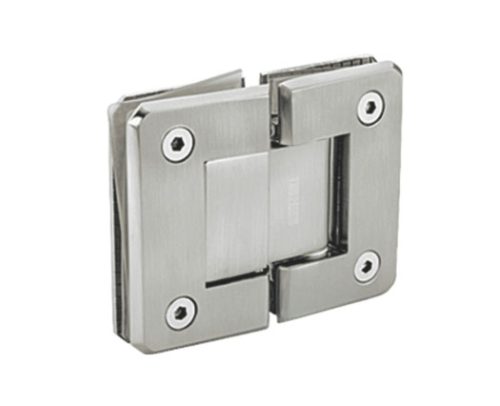

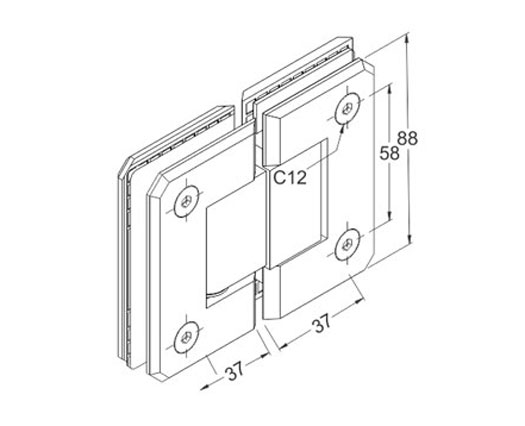

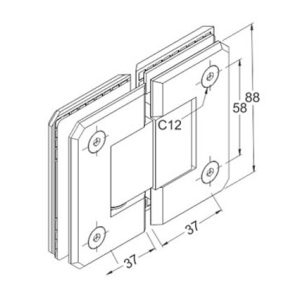

| Glass to Glass 180° | Double action spring door return from 25° |

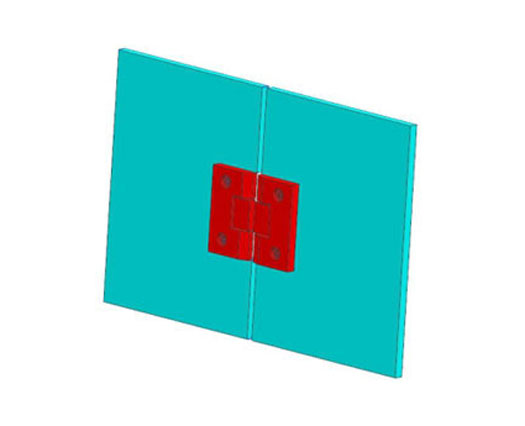

| Area of application : | For connecting glass door panel with a fixed glass panel at 180° |
| Material : | Brass |
| Finish : | SSS / PSS |
| Opening angle side : | Open inside and outside both 90° |

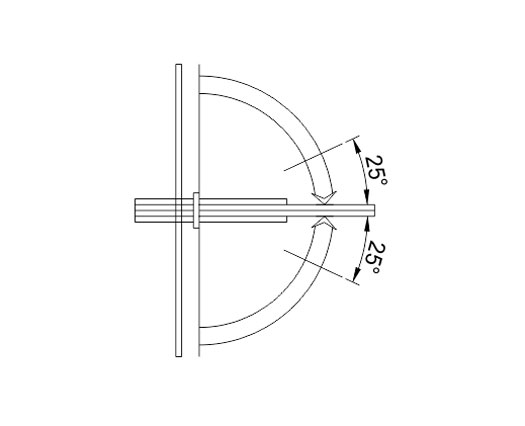

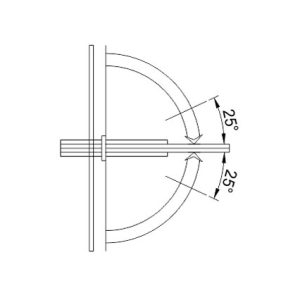

| Version : | Automatic closing from opening angle 25° |
| Load bearing capacity : | 60 kg / 2 Hinges |

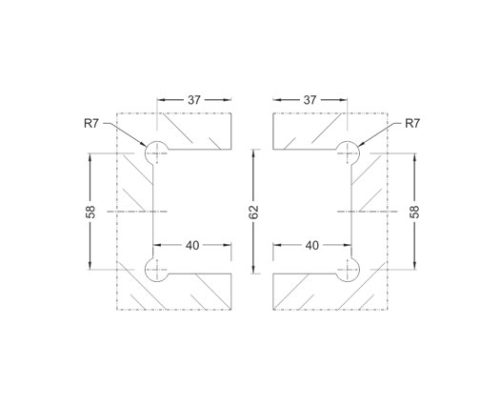

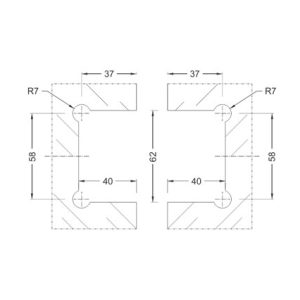

| Installation : | Clamp fixing with a hexagon socket head screws |
Features
- Glass to glass hinge at 180°
- Centrally positioned pivot keeps glass panel In line
- Gaskets to prevent damage to glass panel
- Firm grip with glass panel
- Maximum door width is 800 mm
